Turning On Your Esteem® Device and Selecting a Profile

Follow these steps to turn on your Esteem implant.

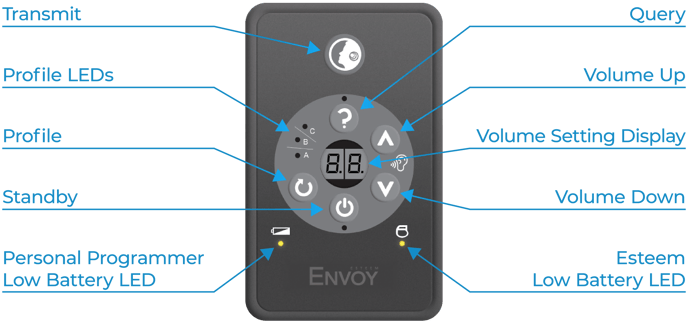

Personal Programmer Callouts



1. Turn on your personal programmer by pressing and holding the “Standby” button until the lights illuminate.

2. Use the “Profile” button to scroll to the desired profile: "A', "B", or "C".

3. Locate the “Transmit” button.

4. Hold the programmer directly over the implanted Esteem device on your head.

Holding Programmer over SP (1)

5. Press the “Transmit” button. Listen for the confirmation tone and check the Profile LED on the programmer.

6. If the the Profile LED is steady, the implant is on in the selected profile.

7. If the LED is blinking, communication was not successful.  Repeat the previous steps.

Having trouble?  We are here to help! Contact Customer Service at 1-800-460-7531 or email customerservice@envoymedical.com.
